No. 8, 17, 18, 28, 29, 22



CE TOOLING  WHITNEY

 Corner Round -Trim & Part Tools

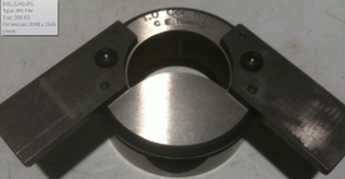

Center & Alignmeant Tools

Use: Die holder is loosened to allow free movement.  The alignment punch is slowly lowered into the die and from pressure onto die will align and center the die.  The die holder is then secured.

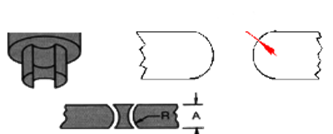

Corner Rounding Tools

  For Single station machine — Stocked dies for use with 22-7gauge

(add “G” for die gauge, “H” for punch heel or “GH” for gauge & heel to the end of the following part #)

Trim & Part / Lattice
