CE TOOLING BRAKE CATALOG |
|
CET catalog shows a small assortment of available Brake Tools available. |
|
SOURCE CATALOGS from some of the suppliers we work with These catalogs offer more choices to find the best too tools for your specific needs. CET will offer the best price from the suppliers. |
|
USA Mfg. AMERICAN STYLE |
|
USA Mfg. AMERICAN STYLE |
|
Asia Mfg. EUROPEAN & TRUMPF / WILLA |
|
Italian Mfg. EUROPEAN & TRUMPF / WILLA |
|

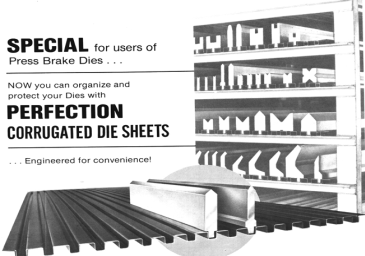

COREGATED STORAGE for American or Trumpf/Willa tools Can be used on your tables, on your racks...or on any flat surface. •Keep tools organized and easily accessible. • Sheet has 17 slots 9/16 wide on 1.5” centers •Protect dies from accidental damage. •Sheet measures 29 1/2” X 96 65lbs. Part# *ACDABS |
|
Brake Tool Storage |
|
Spec’s WDH 39x27˝x40-1/4 Holds 49 tools 835mm length 7 Draws 3" Deep Drawers (2) for Dies 3” deep (3) for Punches 7” deep Part# VT25302 for American & European Style $ Part# VT2503 Willa/Trumpf Style $ |
|
BEST MATERIALS SAE 4140 (42CrMo4) 26-30Rc This is the worldwide standards for precision brake tooling. This materials is selected based on proven strength, toughness, and deep hardening ability. Precision-Ground: Height +/-.01mm (.0004”) Induction hardened CK50 50-56Hrc or DIN 17200, ISO 683 53-60Hrc Precision-Planed: Height +/-.05mm (.002”) Hardness 26-30Rc Option Induction Hardened to 45-49Rc Planed: Height +/-.8mm (.03”) Hardness 26-30Rc Option Induction Hardened to 45-49Rc |
