CE TOOLING              DIE SETS

COMPOUND, HAND OR PROGRESSIVE

We design and produce dies in our own factory and supply though partnering with other manufacturers.

Example of HAND DIE SET:  Operator sets blank into die.

Example of PROGRESIVE DIE SET

              Part falls through die into parts catcher.

Information Required from Customer To Quote a Stamping Die Set:

 Customer machine specifications:

Make: ______

Model: ______

Tonnage: _____

Press type Hydraulic or Flywheel:  _____

Shut Height (to top of bed): ________

Stroke: _____

Slide Adjustment:_____

Shank Hole Diameter:_____

Part Volume:  Estimated Annual Quantity of parts: _____

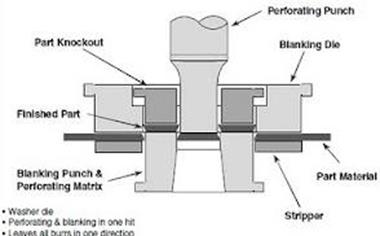

Example of HAND Compound Die  Blanks and perforates a part at the same time. In most cases this operation perforates a hole or holes down, while the part blanks up. Slugs from those holes fall through the die. Operator or Pneumatics then ejects blank.
